Fovotec announces Dynamic Projection

July 10, 2024

News:

Fovotec’s Dynamic Projection is a brand new 3D rendering plug-in that offers a powerful new way to extend viewport space and improve the quality and immersion of image content in a huge number of applications, both real-time and offline. These applications range from gaming and eSports through smartphone photography and cinematography to simulation, security and medical.


The unique projection algorithms and patented processes in Dynamic Projection, developed during more than 10 years of intensive research and development in Fovotec’s labs, provide an unprecedented breadth of view — up to 180 degrees — and can show a six times greater volume of 3D space compared with a standard 90-degree linear projection — but with far less unnatural distortion than any other current method.


Dynamic Projection uses a novel camera rig that is capable of capturing an ultrawide 180 degree seamless field of view at high resolution, the same as the full field of view that a human would normally see from the same point in space. The software also offers an incredibly powerful menu of tools that allow the user to control the appearance of the image and create custom projections that suit the 3D content. Dynamic Projection also contains a suite of intelligent algorithms that adapts the image projection to the camera motion, automatically producing the optimal projection on a per frame basis.


Dynamic Projection is the next iteration of Fovotec's human-centred imaging software and builds on its predecessor FovoRender. It solves the same long standing problem of how to most effectively render very wide fields of view, but does so using a new and improved technical approach with the result that it is easier to set up and is more performative for real-time.



Releases:

A demonstration version for Unity URP is now under trial release with selected partners and a version for Unreal 5.4 is in development. Please get in touch at info@fovotec.com for more information or if you would like to join the trials program.



Dynamic Projection versus Linear Projection:

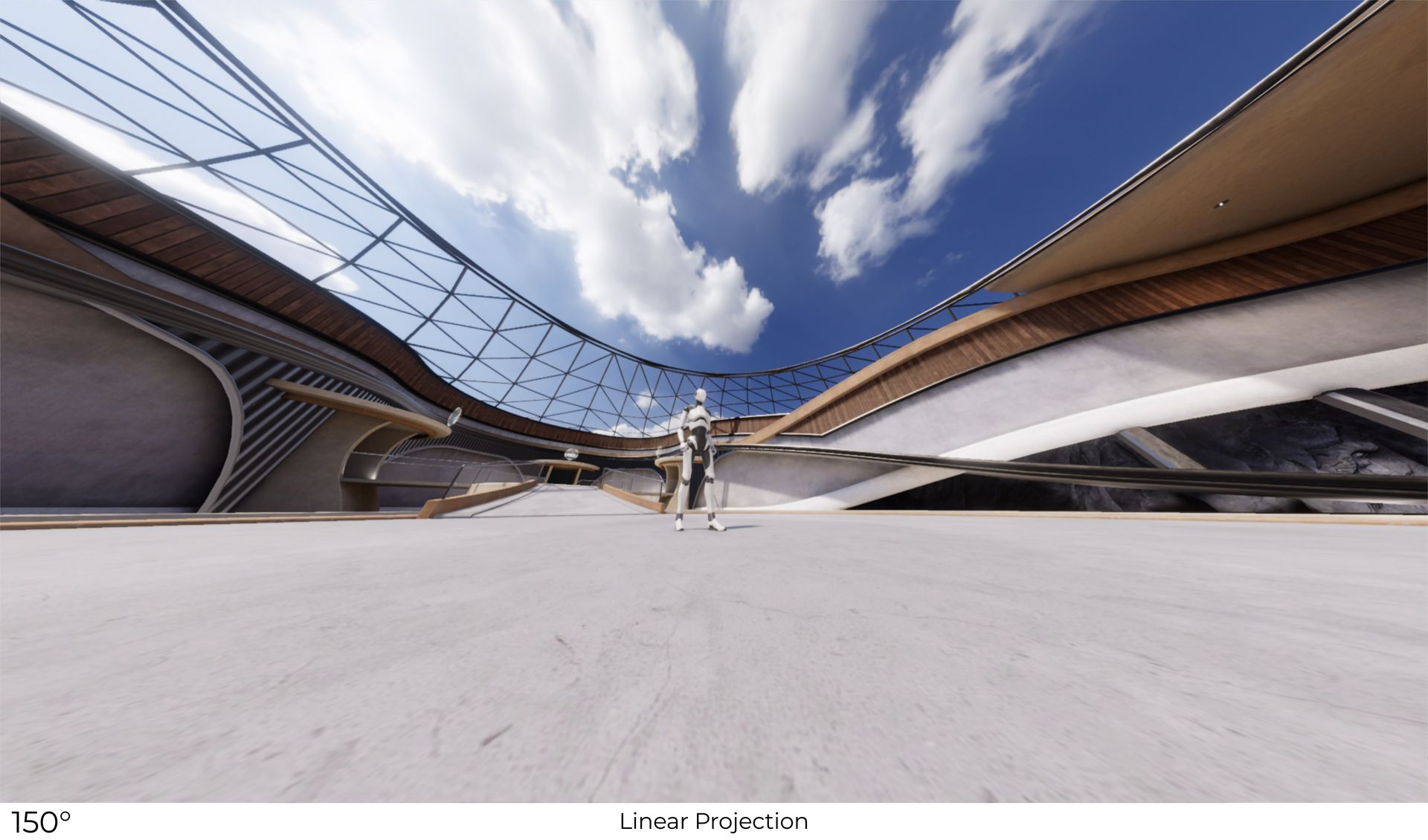

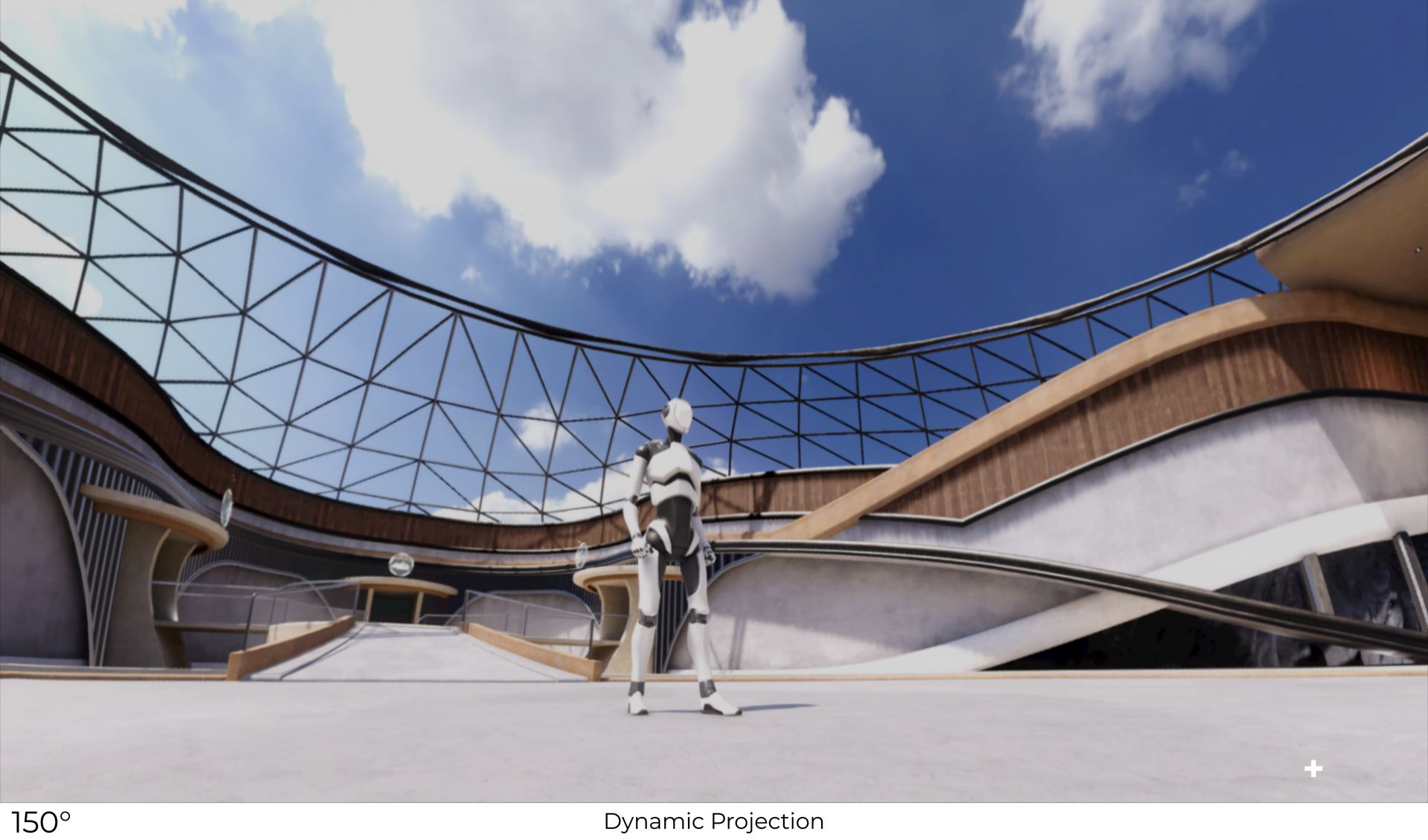

The following slider panel compares Dynamic Projection and Linear Projection at the same horizontal field of view of 150 degrees.

Dynamic Projection versus Curvilinear Projections:

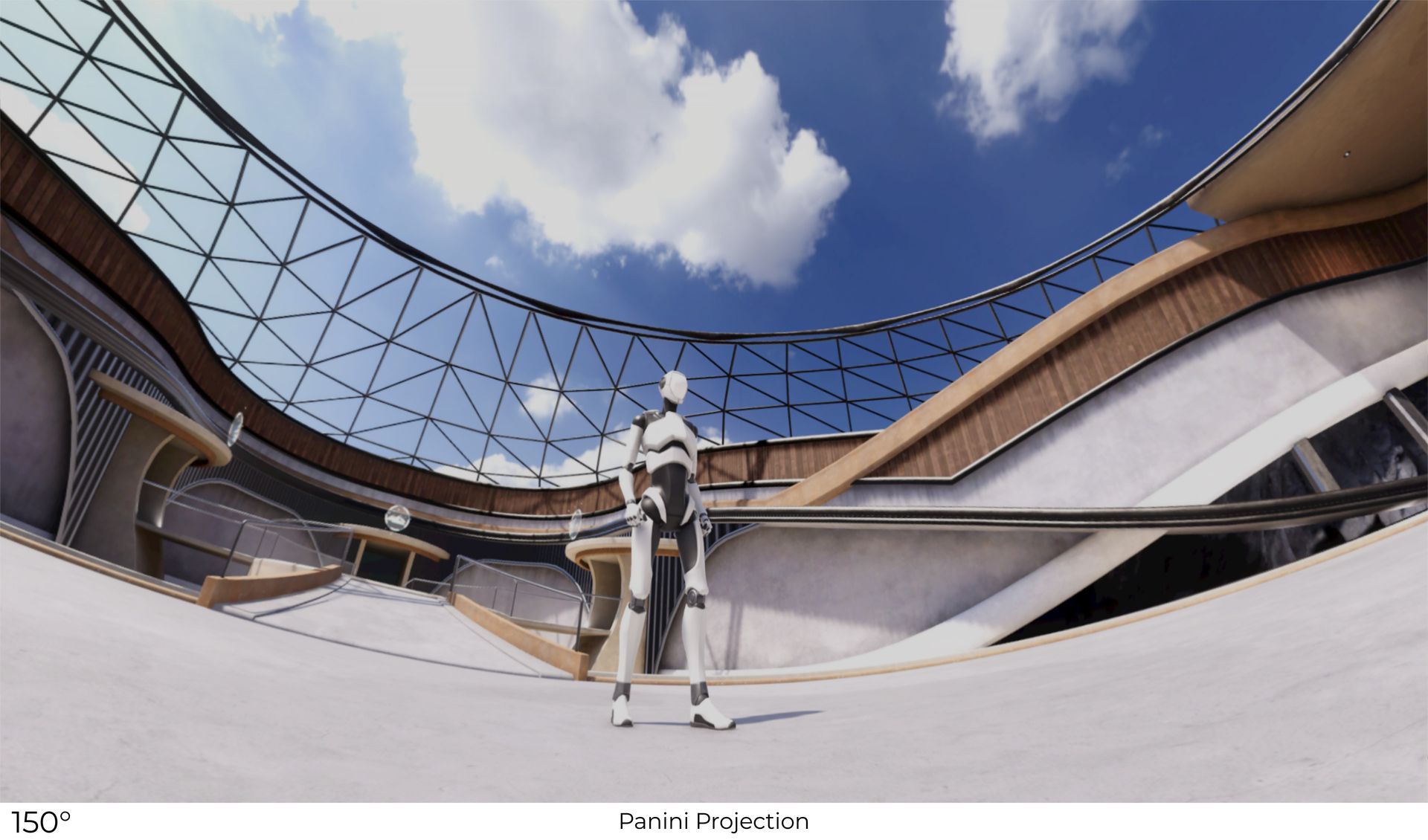

Dynamic Projection software can also render any standard curvilinear projection such as a Panini, Equirectangular, or Fisheye. The below image panel shows a comparison between a standard Panini projection and Dynamic Projection. The Dynamic Projection version has considerably less curvature and the central figure is more naturally proportioned.

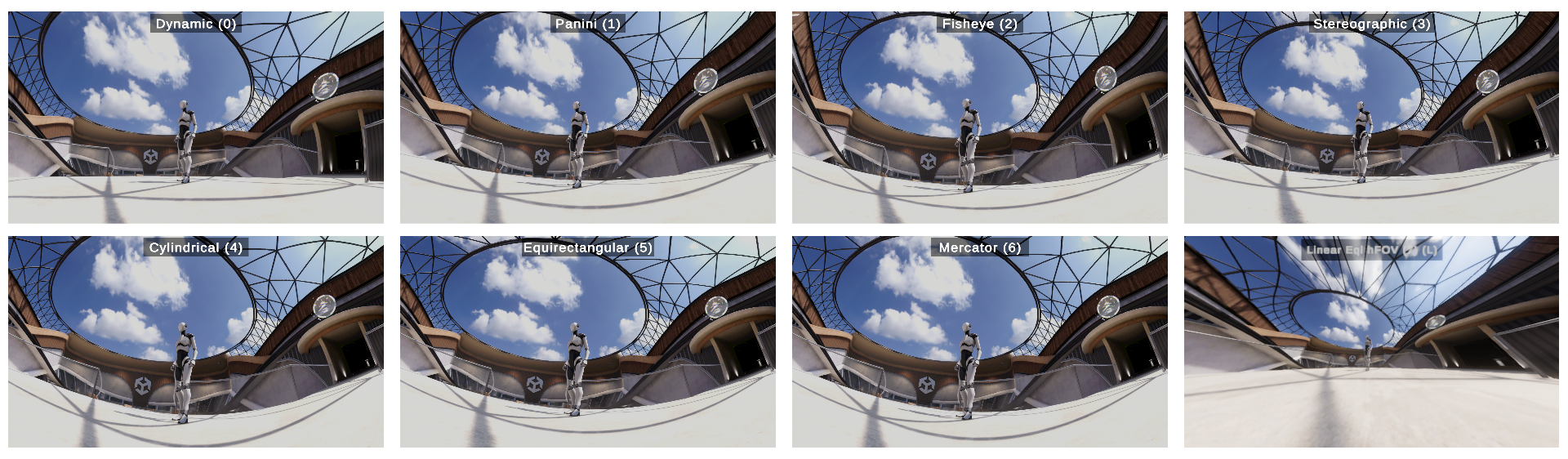

The following panel shows a series of standard curvilinear projections (using Dynamic Projection software). In each case the Dynamic mode image exhibits less distortions, less curvature, a straighter horizon, less angular verticals, all of which combine to increase the feeling of immersion by producing a more natural feeling image.

Dynamic Projection versus Post Processing Effects:

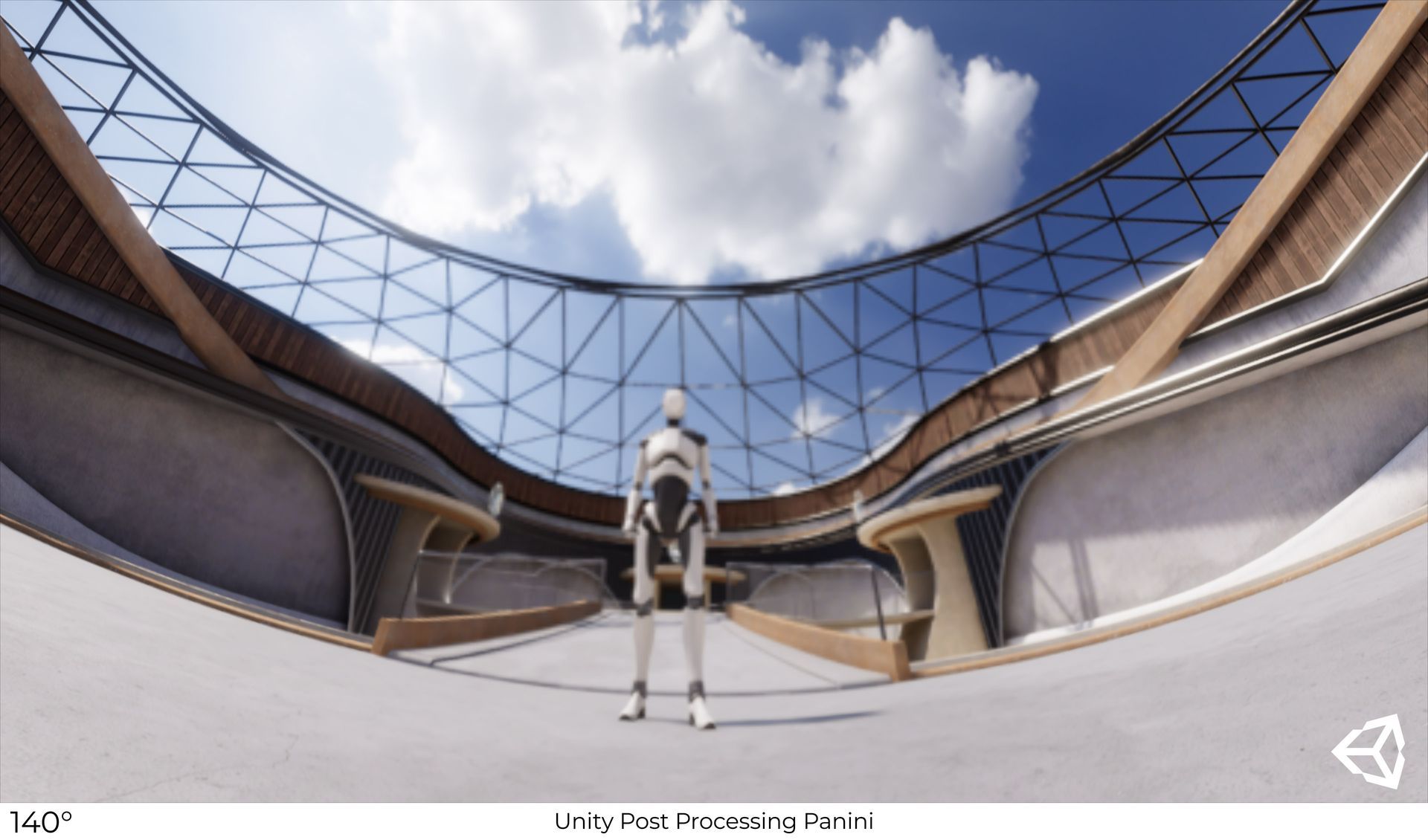

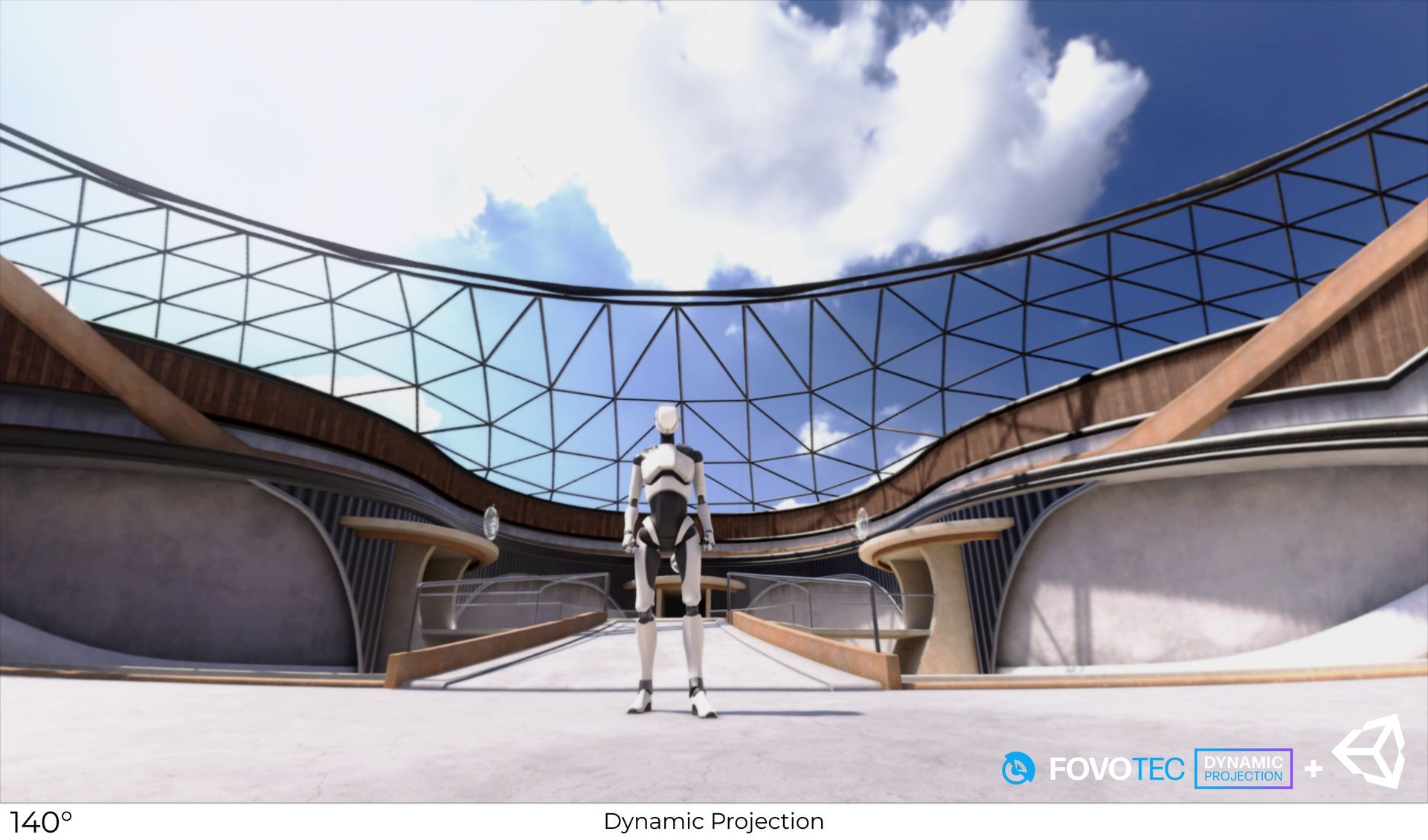

Dynamic Projection is also a significant step forward from the standard methods offered by 3D engines to achieve wide angle curvilinear views, for example Unity's or Epic's single camera post processing solution, both of which suffer from significant resolution problems or high levels of apparent curvature. With its novel twin camera solution and intelligent image processing Dynamic Projection offers both a significantly higher quality image and improved aesthetics with less curvature and distortions. The following images compare the standard single camera Unity Post Processing Panini Effect with the same view generated using Dynamic Projection.
